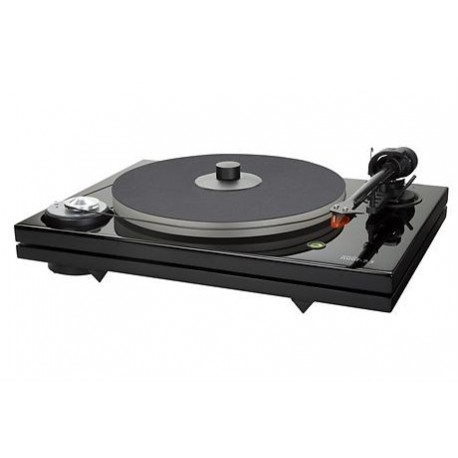

Music Hall MMF-7.3

SÄLJS MED ELLER UTAN ORTOFON 2 M BRONZE MM PICKUP

LOCK INGÅR ALLTID

The distinctive design of the mmf-7.3 isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the adjustable tip-toe feet which are mounted on the bottom platform. The motor speed controls, and wiring are isolated on their own platform and completely decoupled from the turntable.

feature list

• music hall’s unique dual plinth construction
• one-piece full carbon fiber tonearm
• counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• completely isolated/decoupled DC motor with 33⅓ and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge
• motor sits on its own resonance damping puck
• Optional Ortofon 2M Bronze cartridge with a nude fine line stylus
  ($440 value)
• the supplied cartridge is properly aligned and mounted
• precision stainless steel main bearing sheathed in Teflon® for noise-free, fluid operation
• non-resonant acrylic platter with metal screw-on record clamp
  and soft felt mat
• high quality gold RCA connectors and detachable phono cable
• adjustable tip toe feet with anti scratch cups
• low noise fully manual belt drive design
• built-in round spirit level for proper leveling
• dust cover and 45rpm adaptor included
• excellent instruction manual and easy assembly

technical specifications

Dimension:46,5 x 33,8 x 15,5cm (WxDxH)
